€ 1.299,00 excl. btw

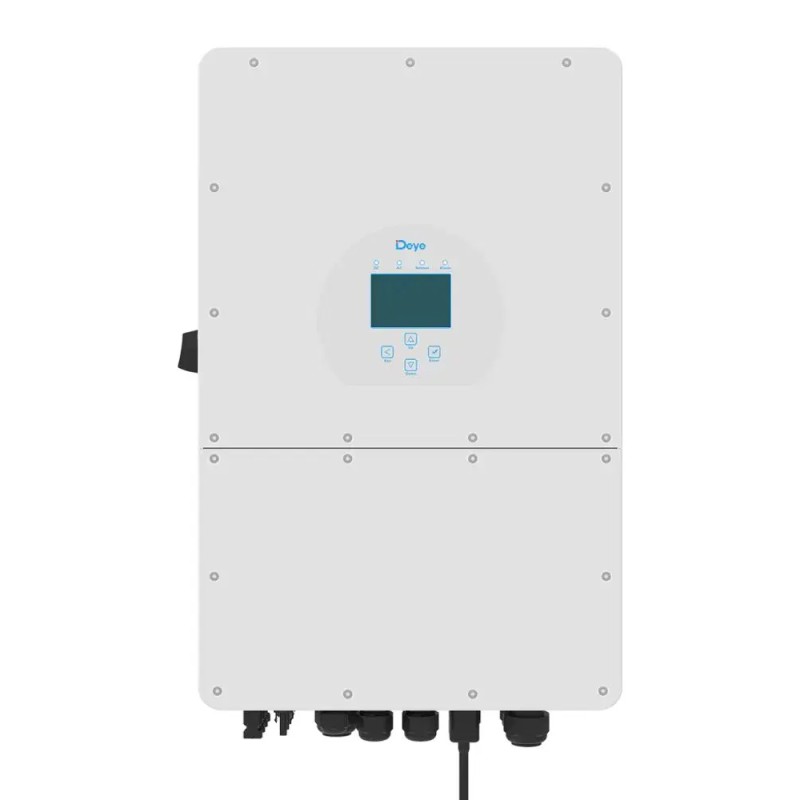

SUN 15K-SG01HP3-EU-AM2 is een gloednieuwe serie driefasige hybride omvormers die een 160-700V HV-batterij ondersteunen, waardoor systeemefficiëntie en minder warmteafvoer worden gegarandeerd. Met een compact ontwerp en een hoge vermogensdichtheid ondersteunt deze serie een DC/AC-verhouding van 1,3, waardoor apparaatinvesteringen worden bespaard. Het ondersteunt driefasige ongebalanceerde uitvoer, waardoor de toepassingsscenario’s worden uitgebreid.
| Model | SUN-15K -SG01HP3-EU-AM2 |
|---|---|
| Battery Type | Lithium-ion |
| Battery Voltage Range(V) | 160-700 |
| Max.Charging Current(A) | 37 |
| Max.Discharging Current(A) | 37 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of battery input | 1 |
| Max DC Input Power（W） | 19500 |
| Max DC Input Voltage（V） | 1000 |
| Start-up Voltage（V） | 180 |
| MPPT Voltage Range（V） | 150-850 |
| Rated DC Input Voltage(V) | 600 |
| Max Input Short-Circuit Current（A） | 39+30 |
| Max Operating PV Input Current（A） | 26+20 |
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/2+1 |
| Rated AC Input/Output Active Power（W） | 15000 |
| Max AC Input/Output Apparent Power （VA） | 16500 |
| Peak Power (off-grid)（W） | 1.5 times of rated power,10s |
| Rated AC Input/Output Current（A） | 22.8/21.8 |
| Max AC Input/Output Current（A | 25/24 |
| Max. Three-phase Unbalanced Output Current（A） | 30 |
| Max Continuous AC Passthrough (grid to load)（A） | 80 |
| Rated Input/Output Voltage/Range(V) | 220/380V，230/400V 0.85Un-1.1Un |
| Grid Connection Form | 3L+N+PE |
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Total Current Harmonic Distortion THDi | <3% (of nominal power) |
| DC Injection Current | <0.5%ln |
| Max Efficiency | 97.6% |
| Euro Efficiency | 97.0% |
| MPPT Efficiency | ＞99% |
| Integrated | Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection |
| Surge Protection Level | TYPE II(DC),TYPE II(AC) |
| Communication Interface | RS485/RS232/CAN |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| Operating Temperature Range | -40 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Noise | ≤ 55 dB(A) |
| Ingress Protection(IP) Rating | IP 65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC),OVC III(AC) |
| Cabinet size（W*H*D）[mm] | 408*638*237（Excluding connectors and brackets） |
| Weight[kg] | 30.5 |
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
| Type Of Cooling | Intelligent air cooling |
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105 |
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
